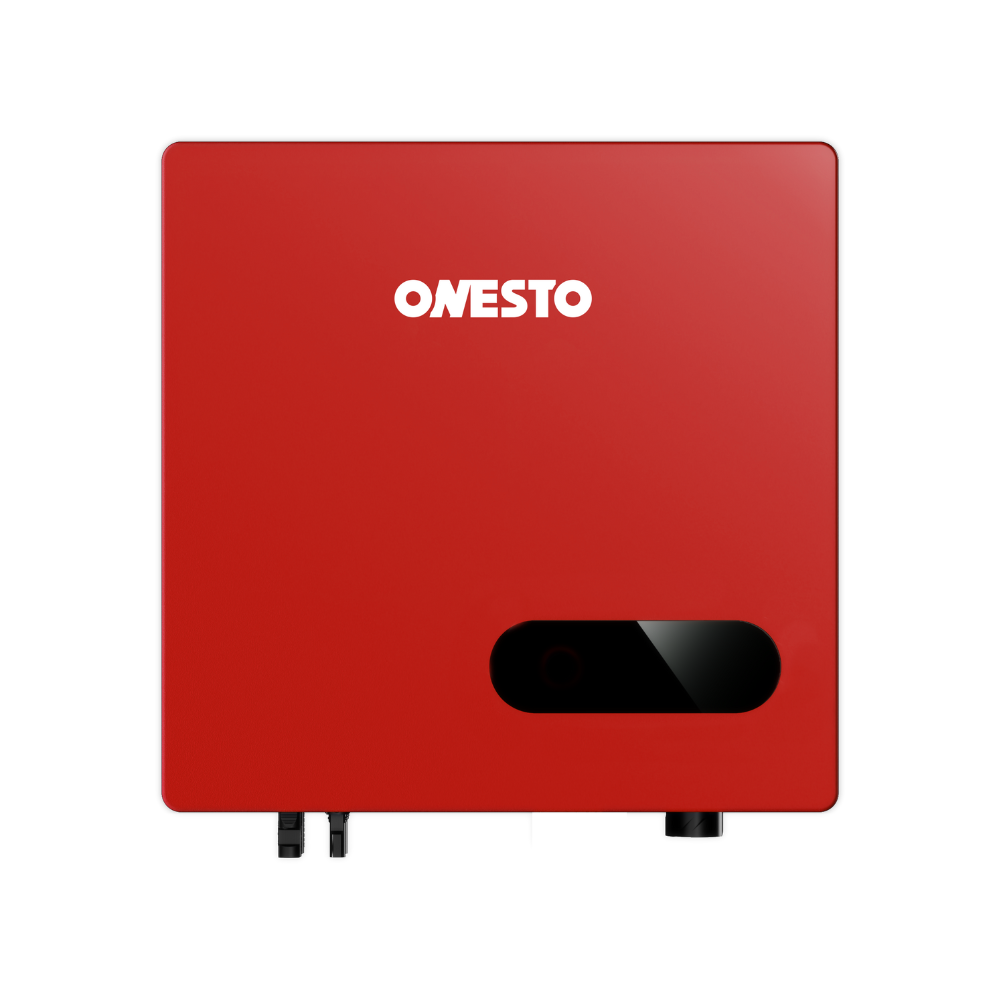

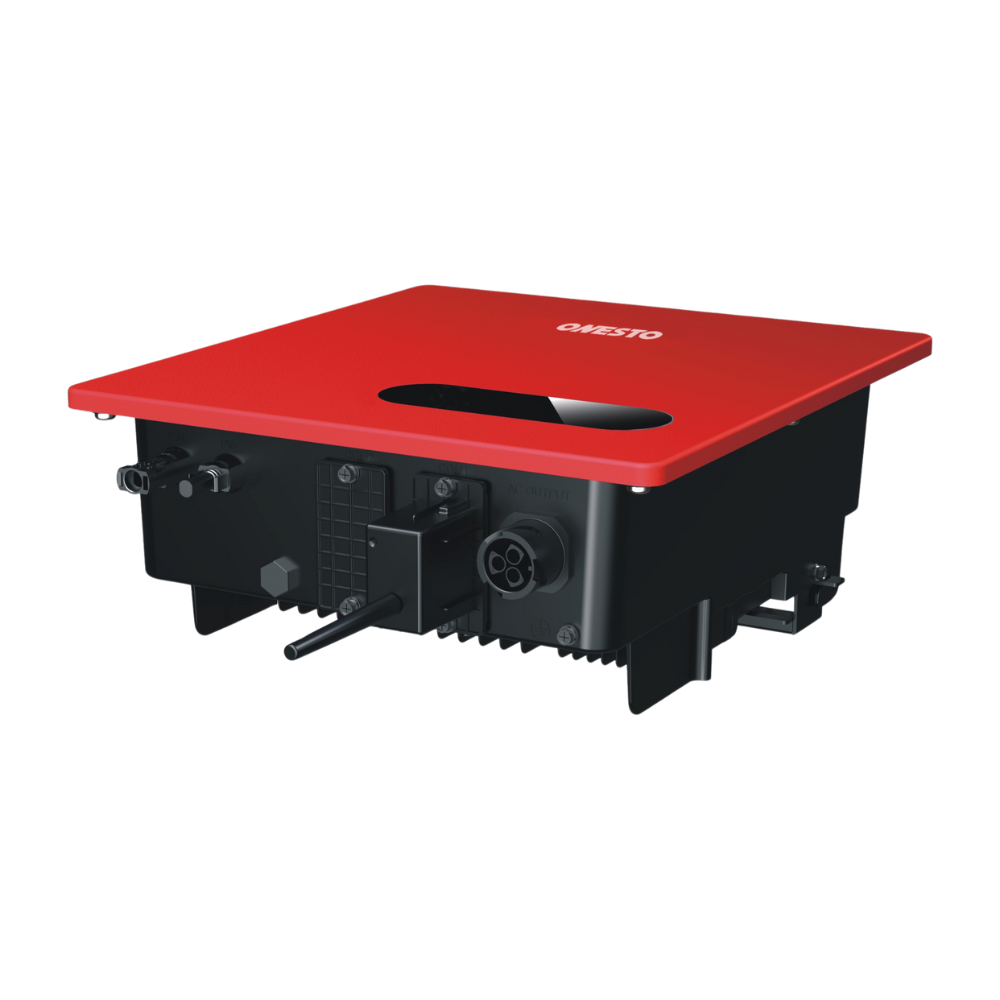

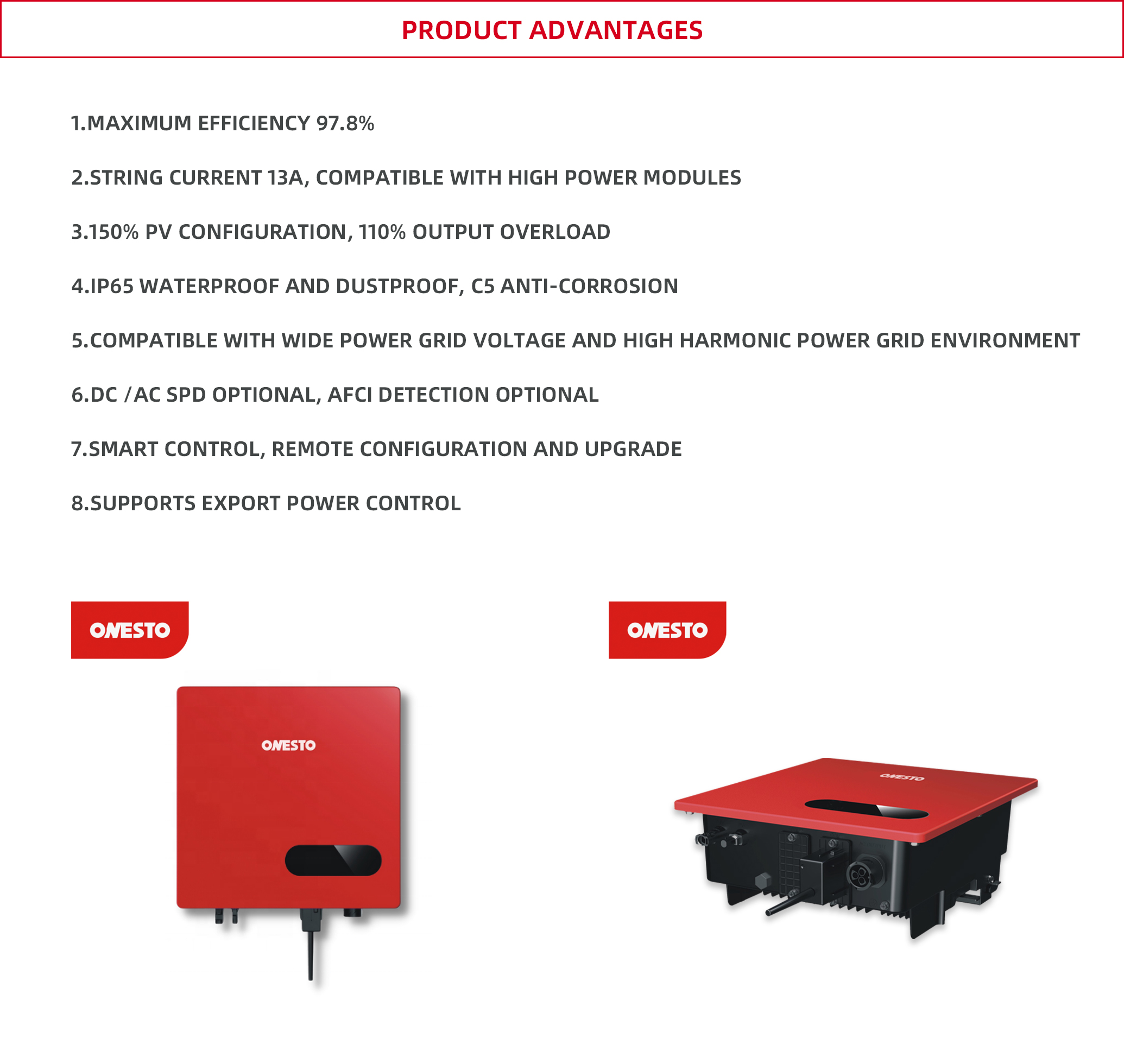

2kw 3kw Single Phase On Grid Solar Inverter with One MPPT

WIth IEC/EN61000-1/2/3/4, IEC61727/62116, CEI 021 Certificates

SUPERIOR EFFICIENCY

1.Maximum efficiency 97.8%

2.String Current 15A, compatible with high Power modules

3.150% PV configuration, 110% output overload

HIGH RELIABILITY

1.IP65 waterproof and dustproof, C5 anti-corrosion

2.Compatible with wide power grid voltage and high harmonic power grid environment

3.DC /AC SPD optional, AFCI detection optional

INTELLIGENT MAINTENANCE

1.Remote configuration and upgrade

2.Supports export power control

APPLICATION

Family Use

Inquiry Now

Specification

Max. Efficiency	97.8%
Rated Input Voltage	360V
Max. Input Current	13A
Max. Number of PV Strings	1
No. of MPPTs	1
Rated AC Active Power	3,000 W
Rated AC Voltage	220V/230V, L+N+PE
Rated Grid Frequency	50Hz / 60Hz
Communication	Wifi(Optional)/GRPS(Optional)/RS485(Optional)

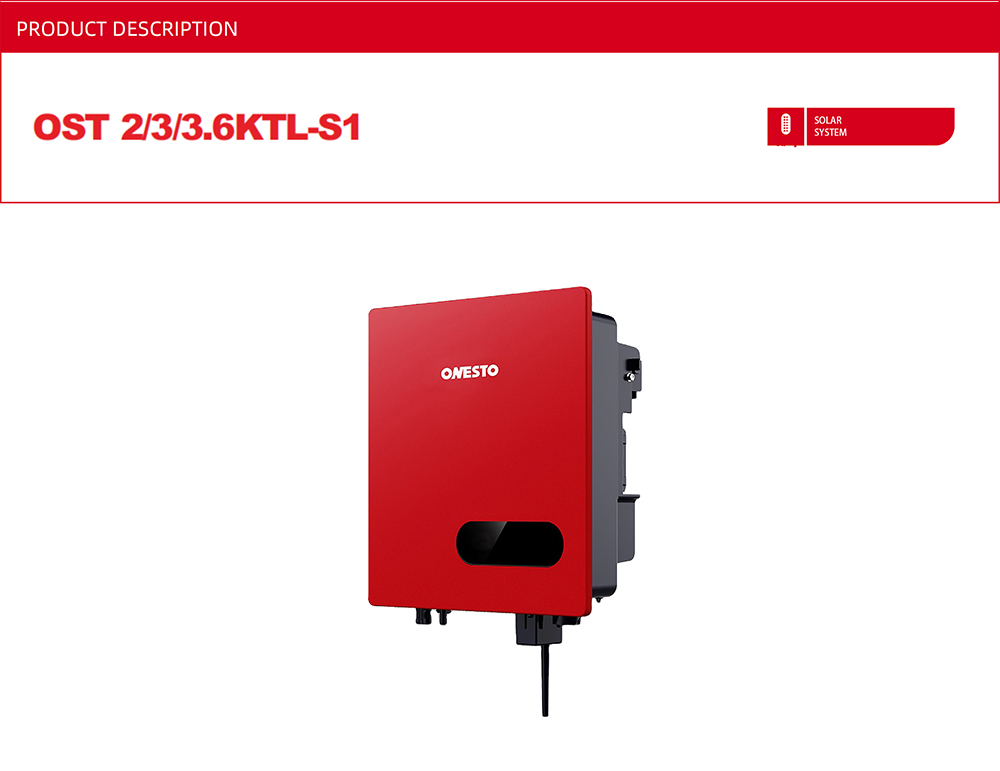

Model	OST 2KTL-S15	OST 3KTL-S15
Efficiency
Max. Efﬁciency	97.5%	97.8%
European Efﬁciency	96.5%	96.8%
Max. Input Voltage	500V
Max. PV conﬁguration (STC)	150%
Rated Input Voltage	360V
Max. Input Current	15A
Max.Short Circuit Current	20A
Start Input Voltage	70V
MPPT Operating Voltage Range	50V-490V
Max. Number of PV Strings	1
No. of MPPTs	1
Rated AC Active Power	2,000W	3,000W
Max. AC Apparent Power	2,200VA	3,300VA
Max. AC Active Power (PF=1)	2,200W	3,300W
Max. AC Output Current	10A	15A
Rated AC Voltage	220V/230V, L+N+PE
AC Voltage Range ①	160V-300V (Adjustable)
DC Current Injection	<0.5%ln
Power Factor	>0.99 Rated power (Adjustable 0.8 LD-0.8 LG)
Topology	Transformerless
IP Rating	IP65
Night Self Consumption	<1W
Cooling	Natural cooling ℃ ℃
Operating Temperature Range	-25 -60
Relative Humidity Range	0-100%
Max. Operating Altitude	4000m
Noise (typical)	30dB
Dimensions (WHD)	320mm344mm137mm
Weight	6.5Kg
Display	Wireless & APP+LED, LCD (Optional)
Communication	Optional: WiFi / GPRS / RS485
Safety	IEC62109-1/2
Grid Code	IEC 61000-1/2/3/4, IEC 61727/62116, CEI 021
Warranty	5 Years
