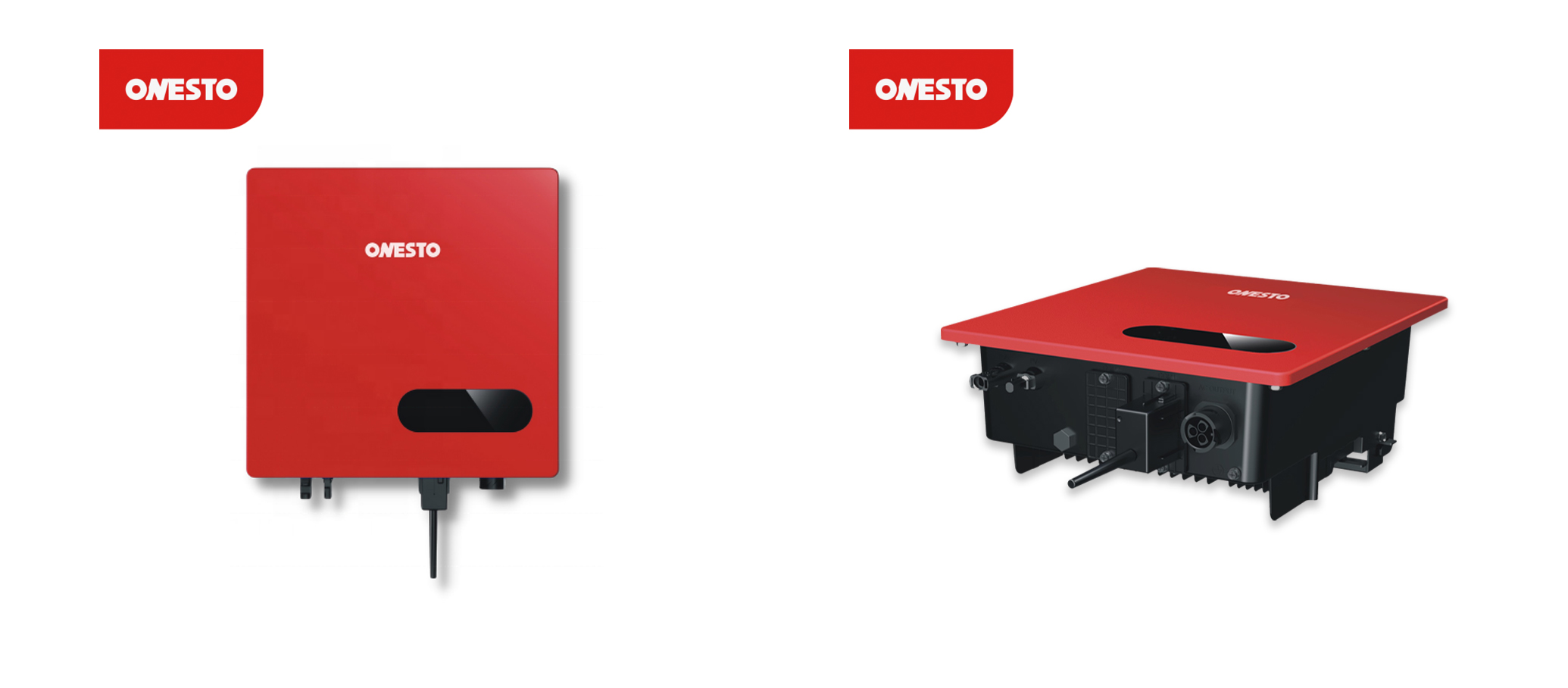

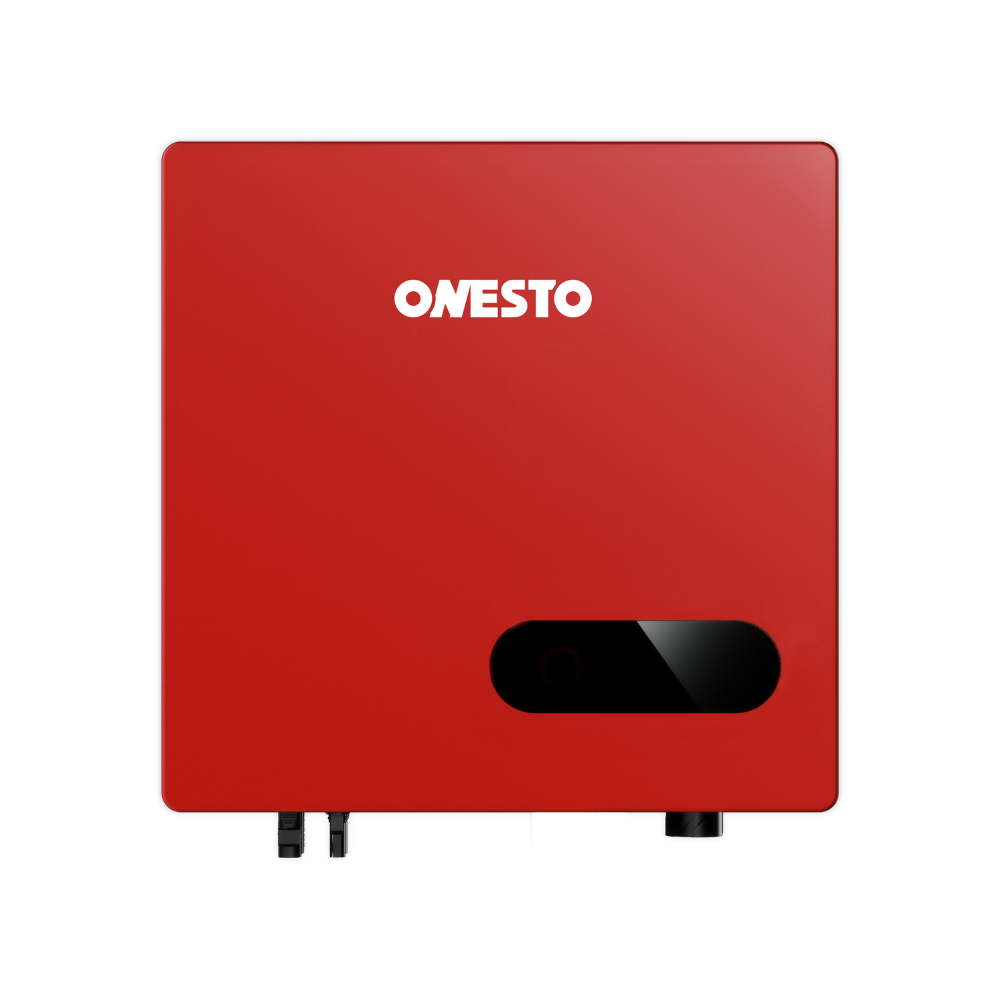

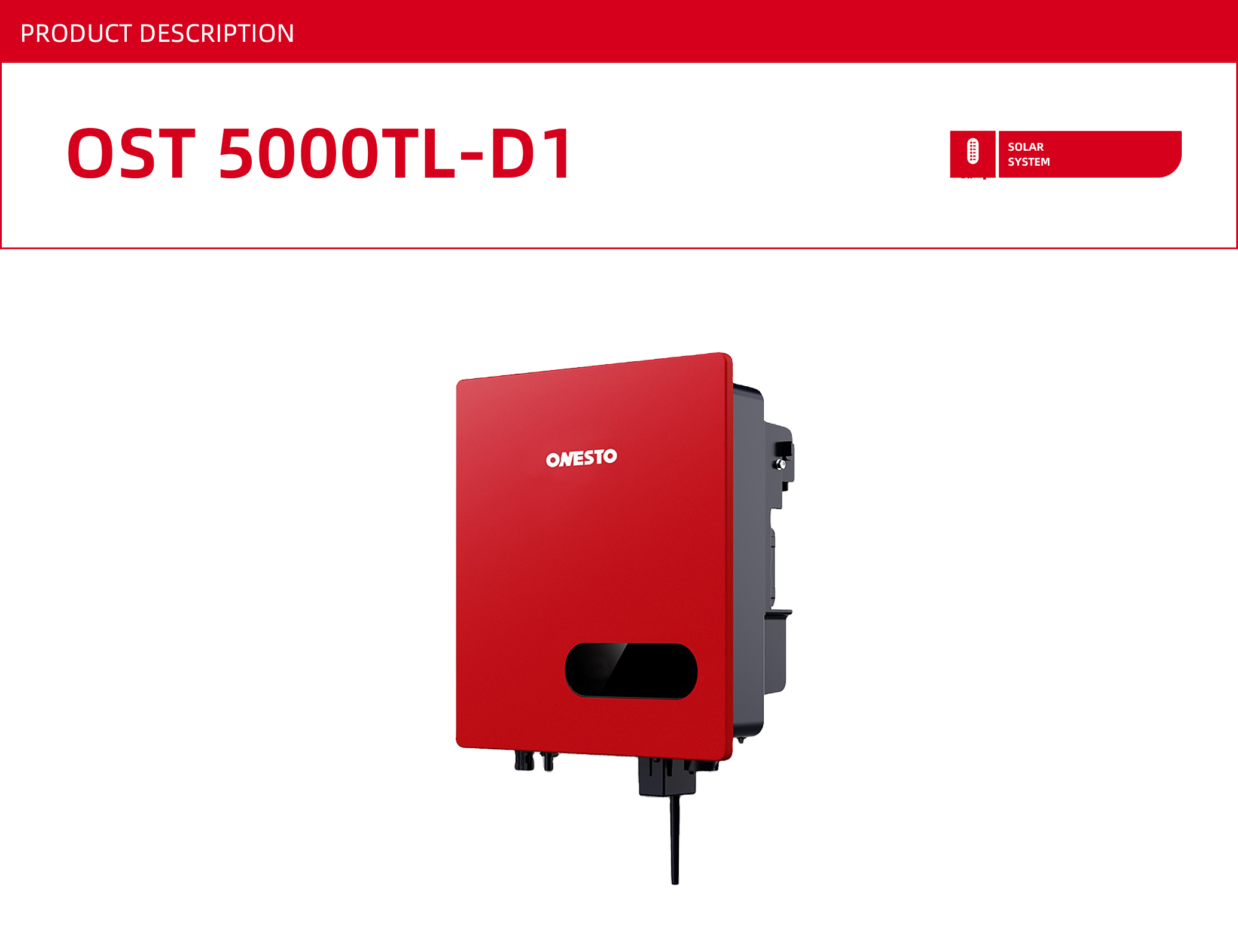

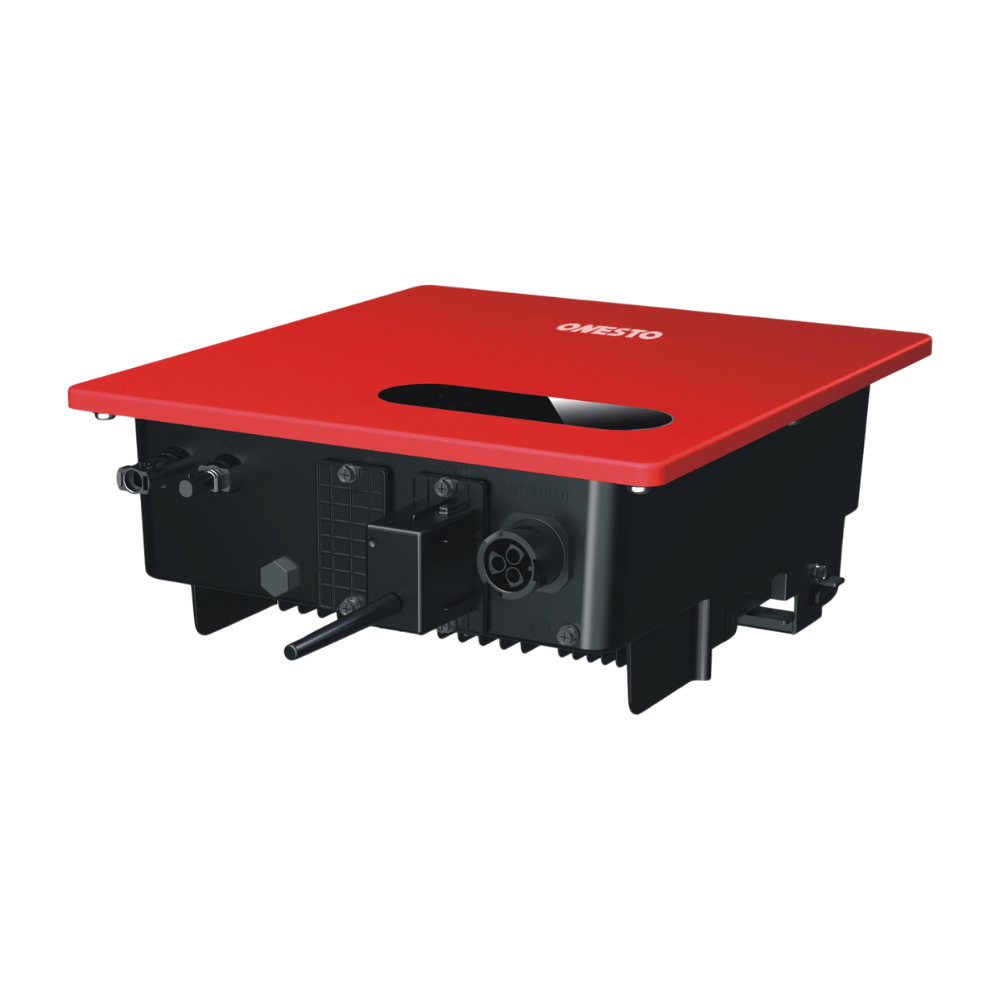

4kw 5kw 6kw Single Phase On Grid Solar Inverter with Two MPPT

WIth IEC61000-1/2/3/4, IEC61727/62116, CEI021 Certificates

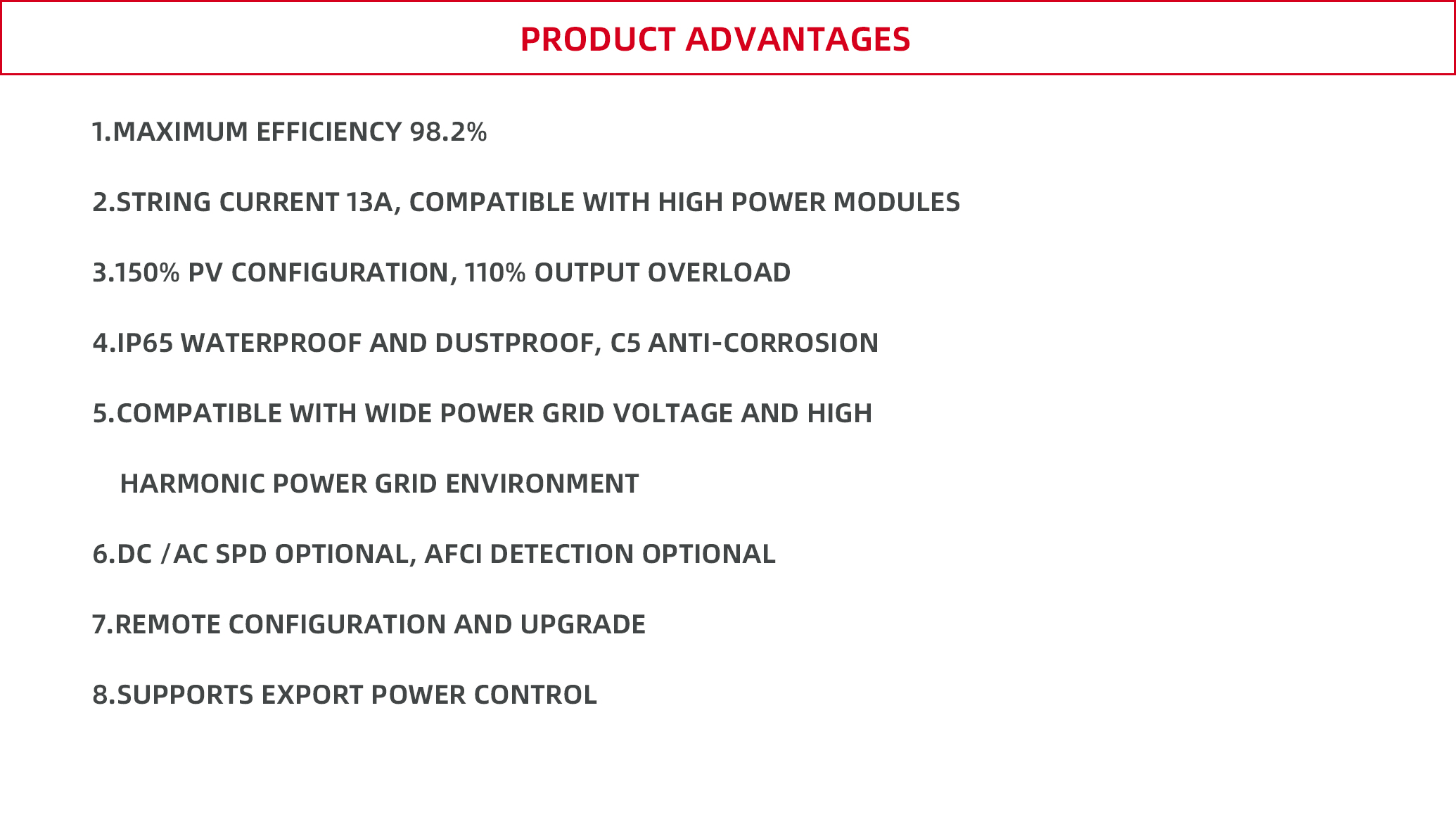

SUPERIOR EFFICIENCY

1.Maximum efficiency 98.2%

2.String Current 15A, compatible with high Power modules

3.150% PV configuration, 110% output overload

HIGH RELIABILITY

1.IP65 waterproof and dustproof, C5 anti-corrosion

2.Compatible with wide power grid voltage and high harmonic power grid environment

3.DC /AC SPD optional, AFCI detection optional

INTELLIGENT MAINTENANCE

1.Remote configuration and upgrade

2.Supports export power control

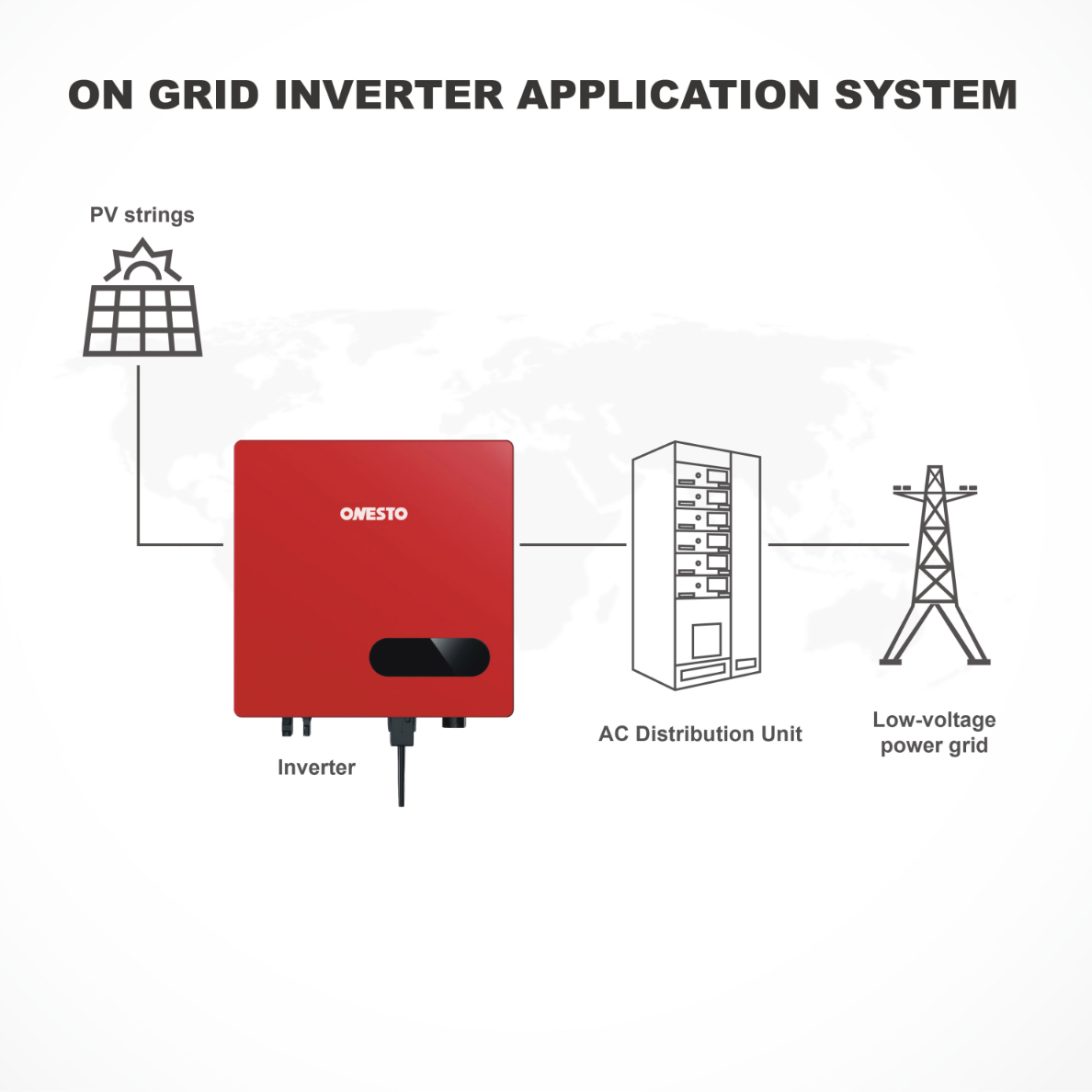

APPLICATION

Family Use

Inquiry Now

Specification

Max. Efficiency	98.2%
Rated Input Voltage	360V
Max. Input Current	13A
Max. Number of PV Strings	2
No. of MPPTs	2
Rated AC Active Power	4000W/5000W/6000W
Rated AC Voltage	220V/230V, L+N+PE
Rated Grid Frequency	50Hz / 60Hz
Communication	Wifi(Optional)/GRPS(Optional)/RS485(Optional)

Model	OST 4KTL-D15	OST 5KTL-D15	OST 6KTL-D15
Max. Efﬁciency	98.0%	98.2%	98.2%
European Efﬁciency	97.0%	97.3%	97.4%
Max. Input Voltage	550V
Max. PV conﬁguration (STC)	150%
Rated Input Voltage	360V
Max. Input Current	30A (2*15A)
Max.Short Circuit Current	40A (2*20A)
Start Input Voltage	90V
MPPT Operating Voltage Range	70V-540V
Max. Number of PV Strings	2 (1/1)
No. of MPPTs	2
Rated AC Active Power	4,000W	5,000W	6,000W
Max. AC Apparent Power	4,400VA	5,500VA	6,000VA
Max. AC Active Power (PF=1)	4,400W	5,500W	6,000W
Max. AC Output Current	20A	25A	27.3A
Rated AC Voltage	220V/230V, L+N+PE
AC Voltage Range ①	160V-300V (Adjustable)
Topology	Transformer less
IP Rating	IP65
Night Self Consumption	<1W
Cooling	Natural cooling
Operating Temperature Range	-25℃-60℃
Relative Humidity Range	0-100%
Max. Operating Altitude	4000m
Noise (typical)	30dB

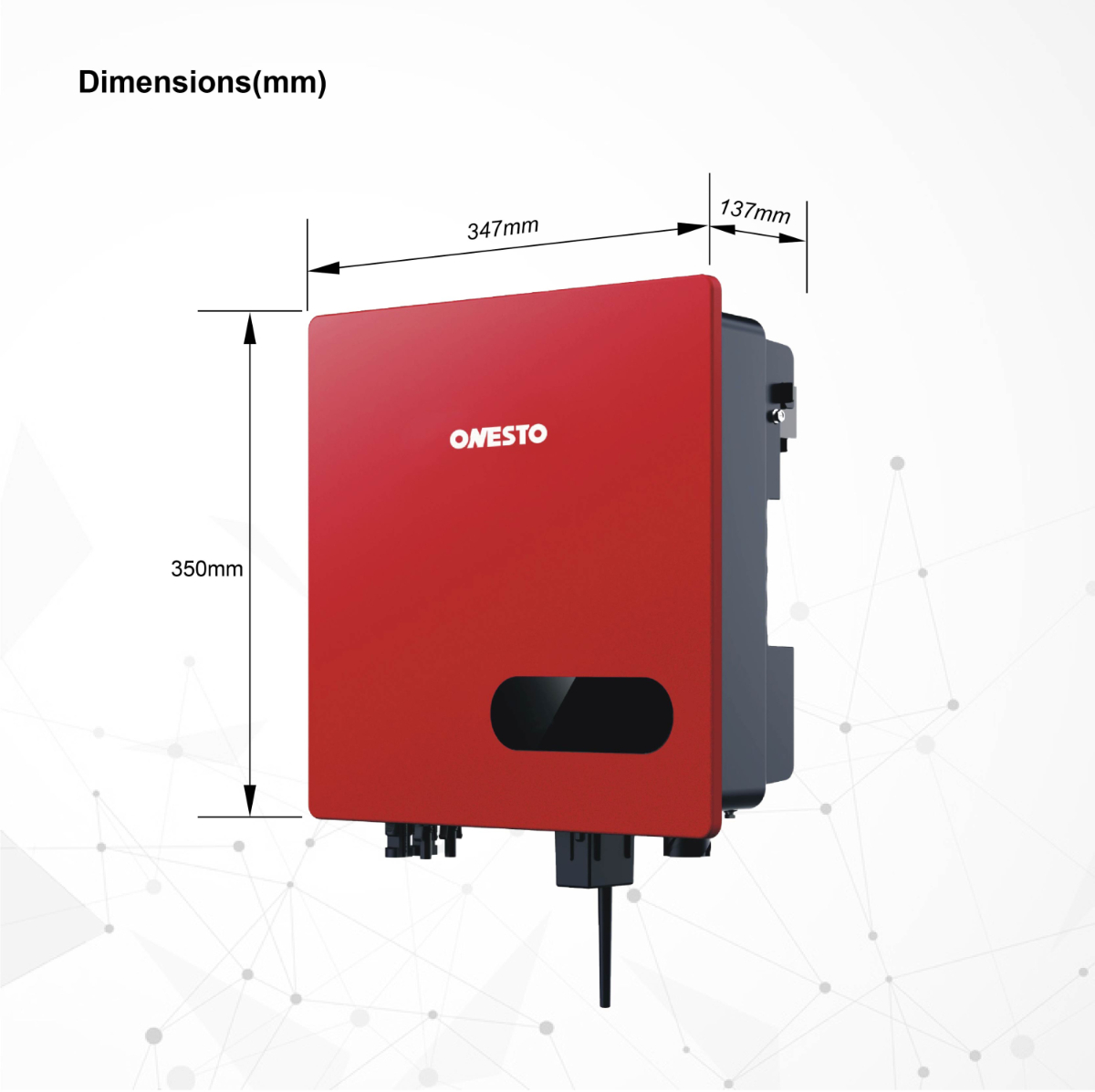

Dimensions (WHD)	350mm347mm137mm
Weight	8.5Kg
Display	Wireless & APP+LED, LCD (Optional)
Communication	Optional: WiFi / GPRS / RS485
Safety	IEC62109-1/2
Grid Code	IEC 61000-1/2/3/4, IEC 61727/62116, CEI 021
Warranty	5 Years
