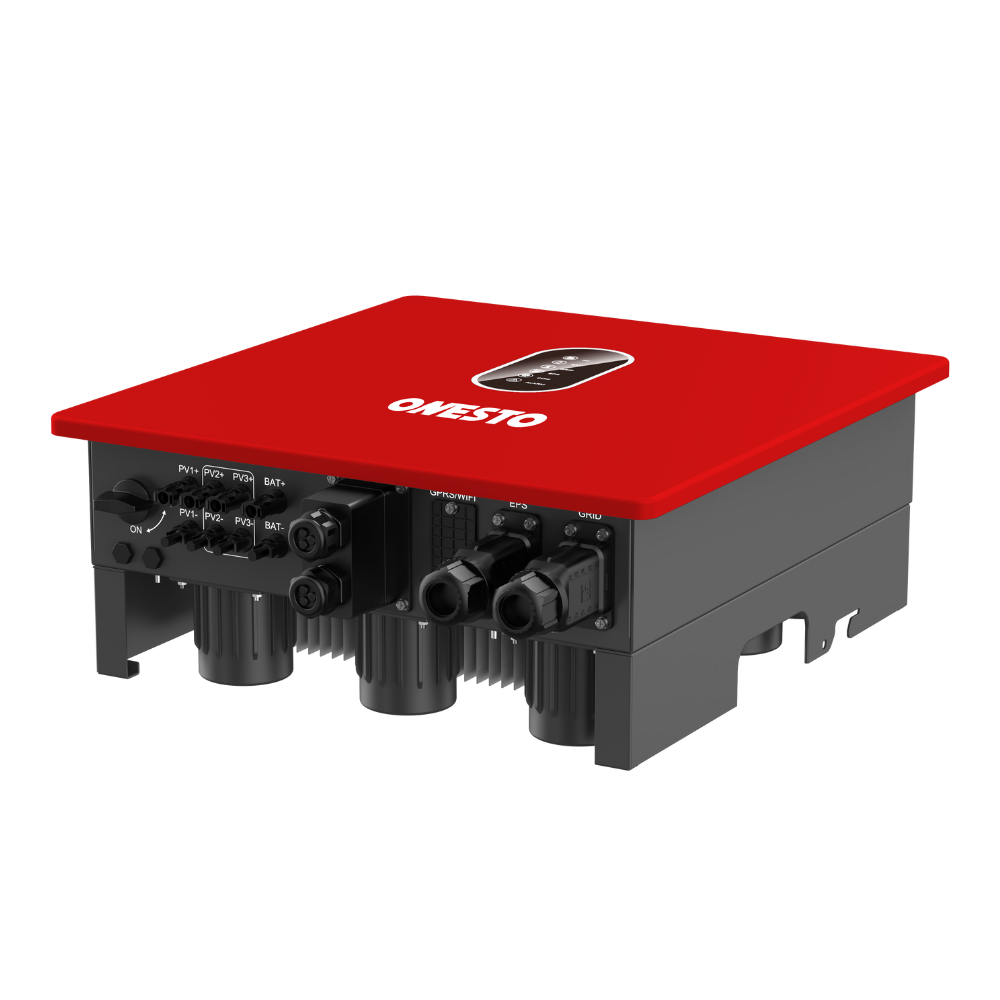

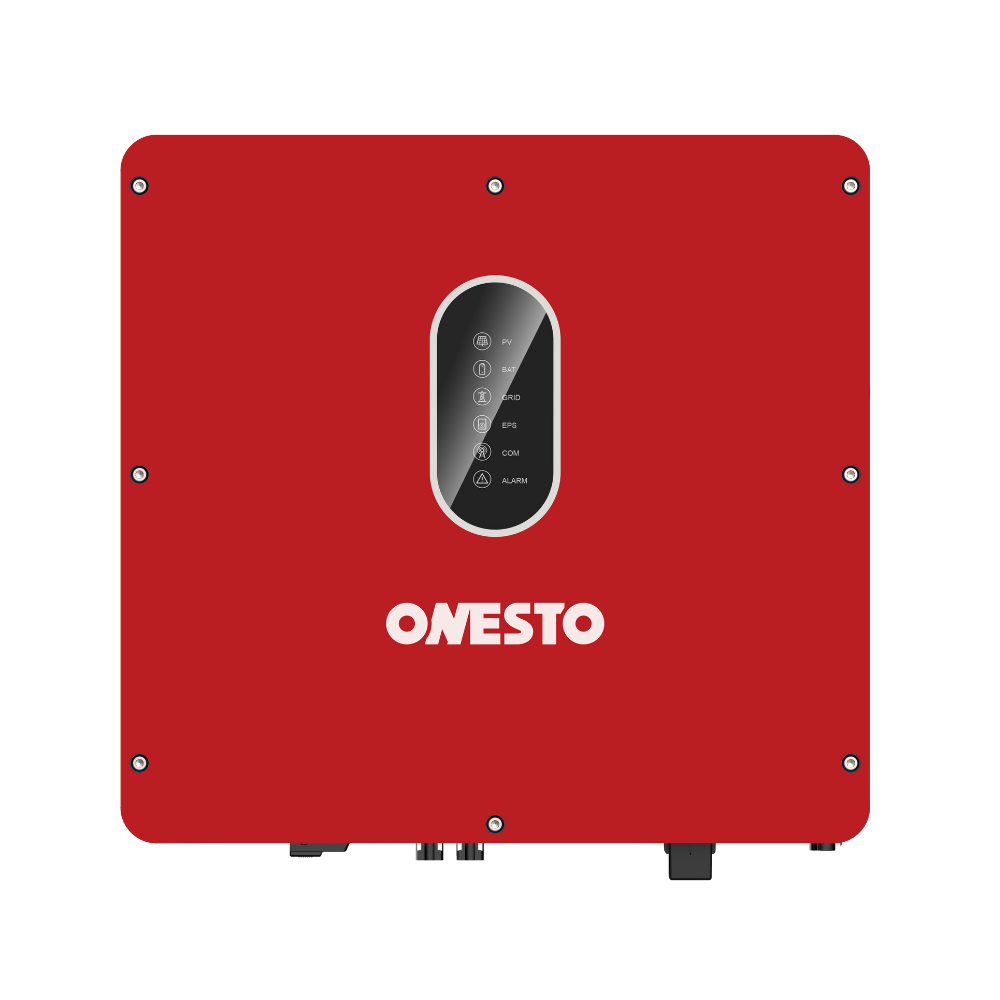

5kw 6kw 8kw 10kw Three Phase Solar Hybrid Inverter with 2 MPPT
With IEC, G99, EN50549, NRS, CEI Certificates
HIGH YIELD
1.Max effificiency 97.3% ,European effificiency 94.3%
2.Max. Charge / Discharge Current 120A
3.Reasonable energy control to increase the proportion of spontaneous use
HIGH RELIABILITY
1.With BMS system to ensure high battery life
2.Natural cooling design
3.Multiple built-in protections, with optional Type II SPD
INTELLIGENT MAINTENANCE
1.Compatible with lead-acid batteries and lithium battery energy storage systems
2.Remote confifiguration and upgrade
3.Quick commission via mobile app, 24/7 remote monitoring
Inquiry Now
Specification
| Max. Efficiency (Battery to Load) | 97.3% |
| Max. Input Voltage | 550V |
| Max. Input Current | 15A |
| Max. Number of PV Strings | 2 |
| No. of MPPTs | 2 |
| Battery Type | Lithium-ion / Lead-Acid |
| Nominal Battery Voltage | 48V |
| Max. Charge / Discharge Current | 120A |
| Rated AC Active Power | 5000W |
| Rated Grid Frequency | 50Hz / 60Hz |
| Communication | RS485, CAN, WIFI / GPRS / 4G (optional) |
Descriptions
|

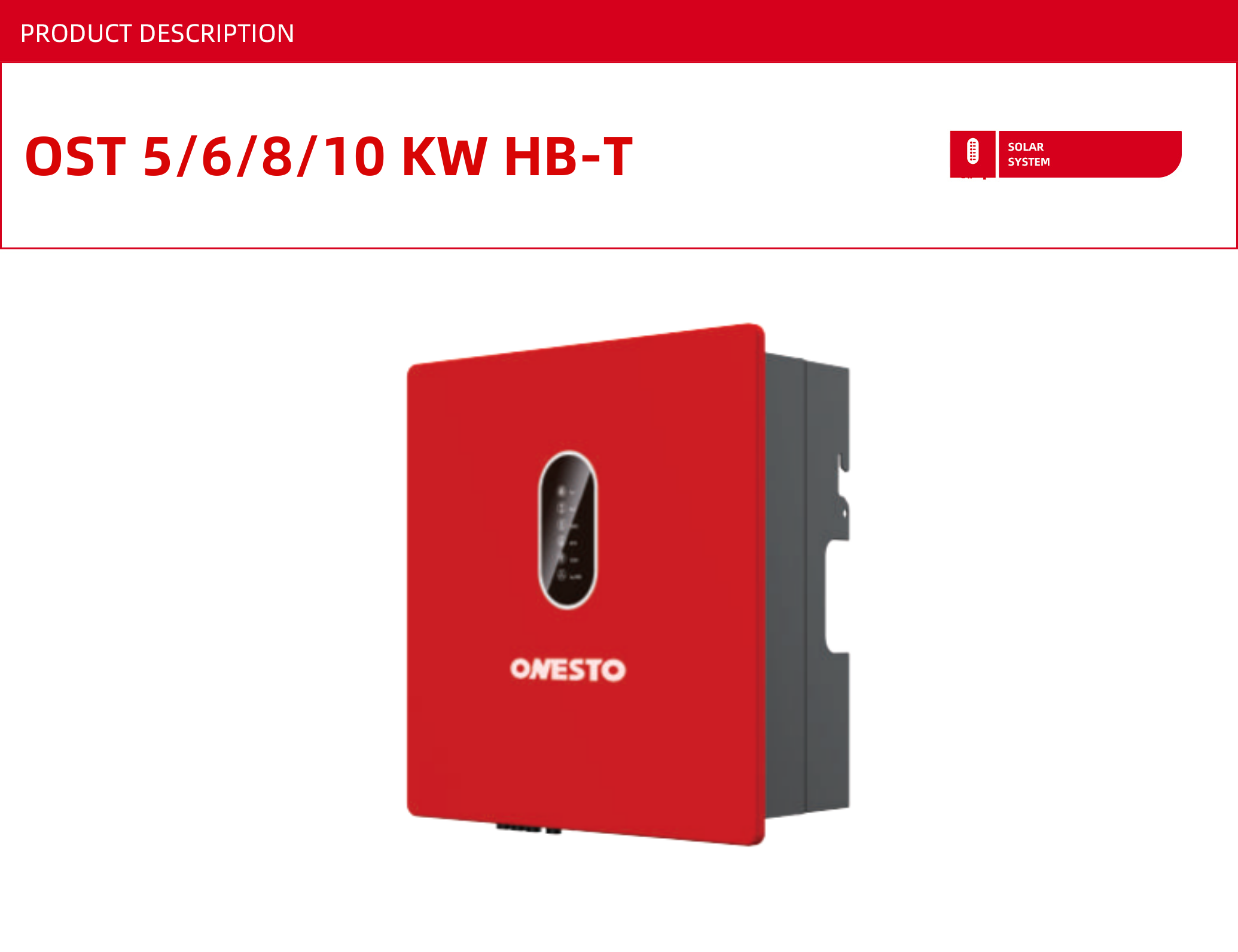

Model |
OST 5000 HB-T |
OST 6000 HB-T |
OST 8000 HB-T |
OST 10000 HB-T |
|
Efficiency |
||||
|
Max.efficiency (PV to AC) |
98.2% |
98.2% |
98.4% |
98.4% |
|
Eur.efficiency (PV to AC) |
97.2% |
97.2% |
97.9% |
97.9% |
|
Max.efficiency (BAT) |
98.0% |
|||
|
Input (PV) |
||||
|
MAX PVPower |
8000W |
9000W |
12000W |
15000W |
|
Max PV voltage |
1000V |
|||
|
Max input current (input A/input B) |
15A/15A |
15A/15A |
20A/30A |
20A/30A |
|
Max short current (input A/input B) |
20A/20A |
30A/40A |
||
|
MPPT voltage range |
160V-950V |
|||
|
No.of MPPT trackers |
2 |
|||
|
String per MPP tracker |
1+1 |
1+2 |
||
|
Input (BAT) |
||||
|
Compatible battery type |
Lithium-ion / Lead-acid |
|||
|
Nominal battery voltage |
200V-600V |
|||
|
Battery voltage range |
150V-600V |
|||
|
Max. charge/discharge current |
25A/25A |
25A/25A |
50A/50A |
50A/50A |
|
Max. charge/discharge power |
8000W/5200W |
9000W/6300W |
12000W/10500W |
15000W/10500W |
|
Lithium battery charge curve |
Self-adaption to BMS |
|||
|
Output (Grid) |
||||
|
Nominal AC output power |
5000W |
6000W |
8000W |
10000W |
|
Max. AC output apparent power |
5500VA |
6600VA |
8800VA |
10000VA |
|
Max.AC output power (PF=1) |
5500W |
6600W |
8800W |
10000W |
|
Max. AC output current |
3*8.3A |
3*10A |
3*13.3A |
3*15.2A |
|
Rated AC voltage |
380V / 400V |
|||
|
AC voltage range |
277V-520V (Adjustable) |
|||
|
Grid connecion |
Three phase |
|||
|
Output (Back up) |
||||
|
Nominal output voltage |
380V / 400V |
|||
|
Nominal output frequency |
50Hz / 60Hz |
|||
|
Nominal output power |
5000W |
6000W |
8000W |
10000W |
|
Nominal output current |
3*7.6A |
3*9.1A |
3*12.2A |
3*15.2A |
|
Transfer time |
10ms (typ) / 20ms (max) |
|||
|
THDV |
<3% (R Load), 5% (RCD Load) |
|||
|
General |
||||
|
Max. operation altitude |
4000m |
|||
|
Noise emission |
30dB |
|||
|
Ingress protection degree |
IP65 |
|||
|
Operating temperature range |
-25℃~45℃ |
|||
|
Relative humidity |
0~100% |
|||
|
Cooling concept |
Natural Cooling |
|||
|
Mounting |
Wall bracket |
|||
|
Dimensions (W*H*D) |
530mm*550mm*212mm |
|||
|
Weight |
26Kg |
29Kg |
||
|
PV connection way |
MC4 / H4 |
|||
|
Battery connection way |
Dedicated DC connector |
|||
|
HMI & COM |
||||
|
Display |
LED+APP (Bluetooth) |
|||
|
Communication interface |
BMS (CAN/RS485), Optional: WiFi/GPRS/4G/Ethernet, DI (DRM/RCR) / Meter (RS485), 1*DO, USB (Firmware upgrade) |
|||
|
Certification |
||||
|
Grid |
IEC 61000-1/2/3/4, G99, NRS 097, EN 50549-1, IEC 61727/62116, CEI 021 |
|||
|
Safety |
IEC 62109-1/2 |
|||
|
Warranty |
5 Years / 10 Years (Optional) |
|||
