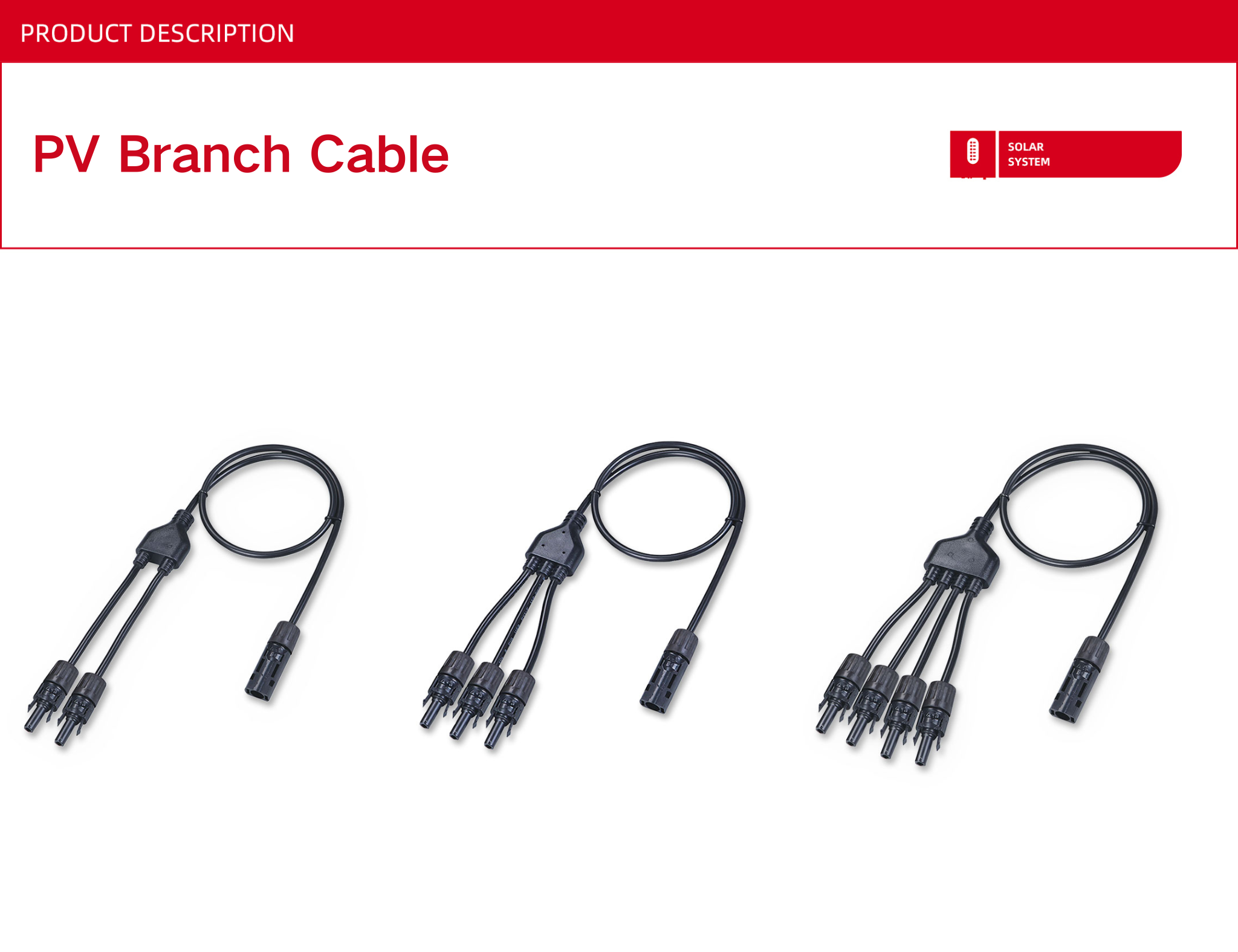

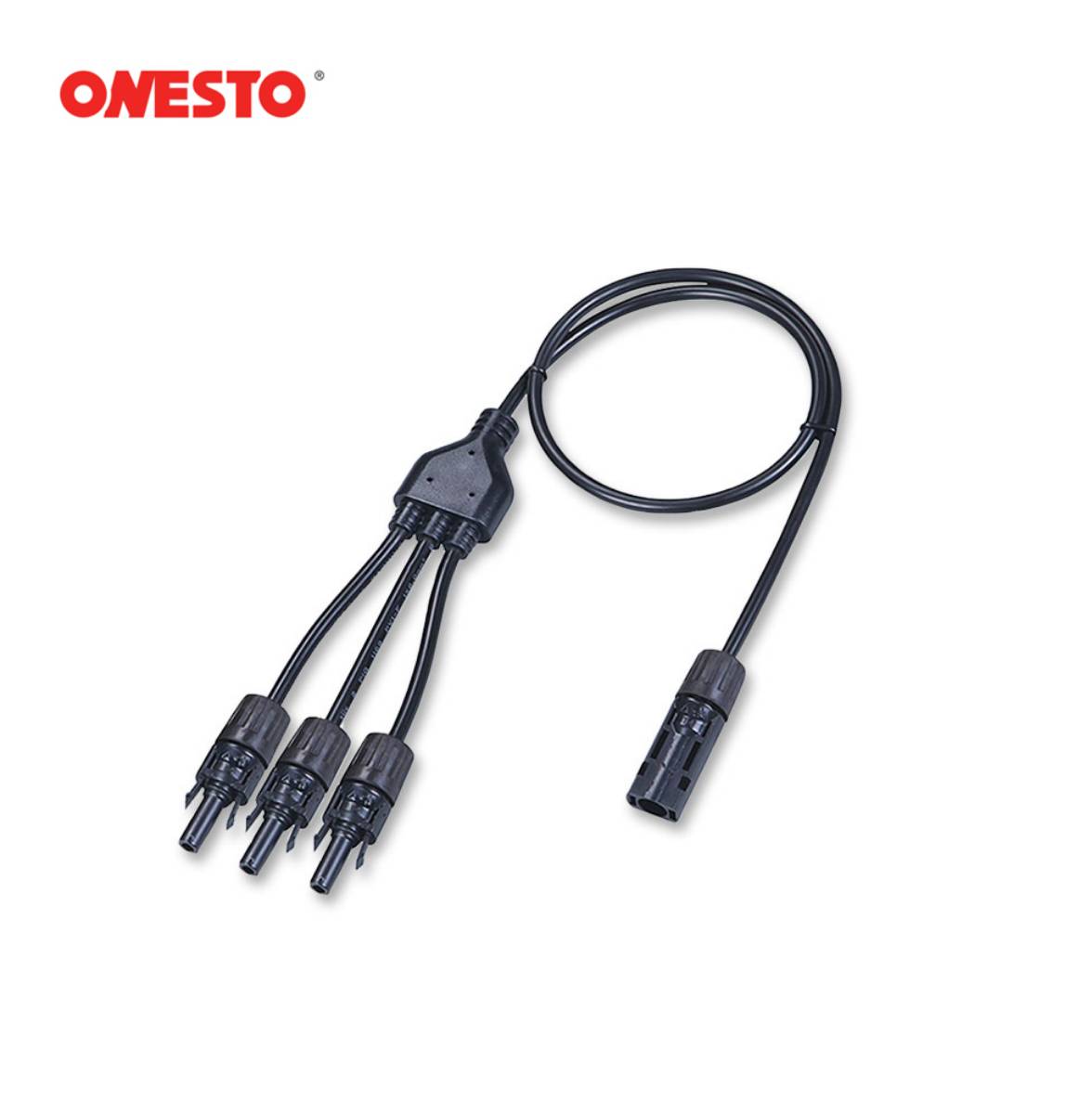

ONESTO Branch Cable 1500Vdc 3 to 1 30A

Solar Cable Parallel Adaptor in Pair for Solar Panel

-Made of anti-aging and UV-resistant material
-Low heat and power loss
-High robustness, high grade reliable connection
-Convenient installation, strong commonality
-Suitable for usage under bad outdoor condition

Inquiry Now

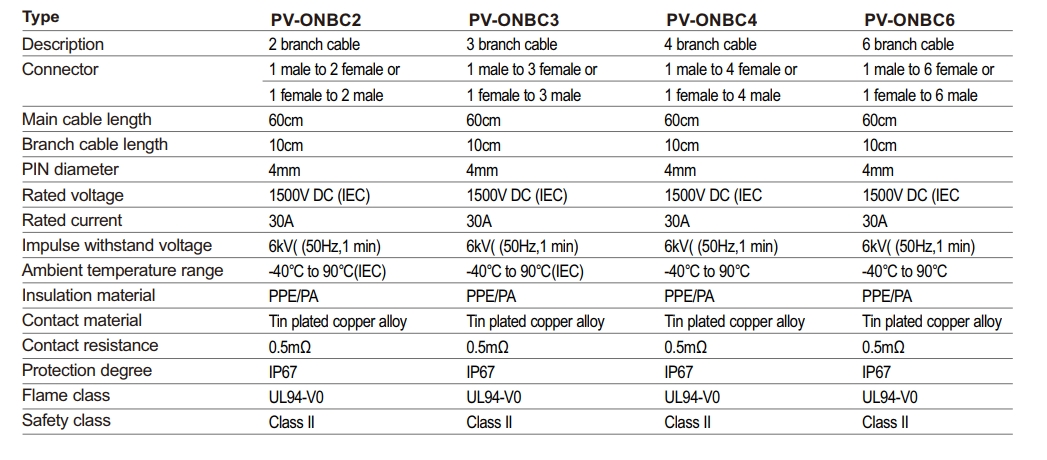

Specification

Description 3 branch cable( 1 male to 3 female OR 1 female to 3male)
Main cable length 60cm
Branch cable length 10cm
Rated voltage 1500Vdc
Rated current 30A
Protection degree IP67

Descriptions



Branch Cable 1500Vdc 3 to 1 30A solar panel wire connectors branch cable pv connector cable Pv Solar Cable
