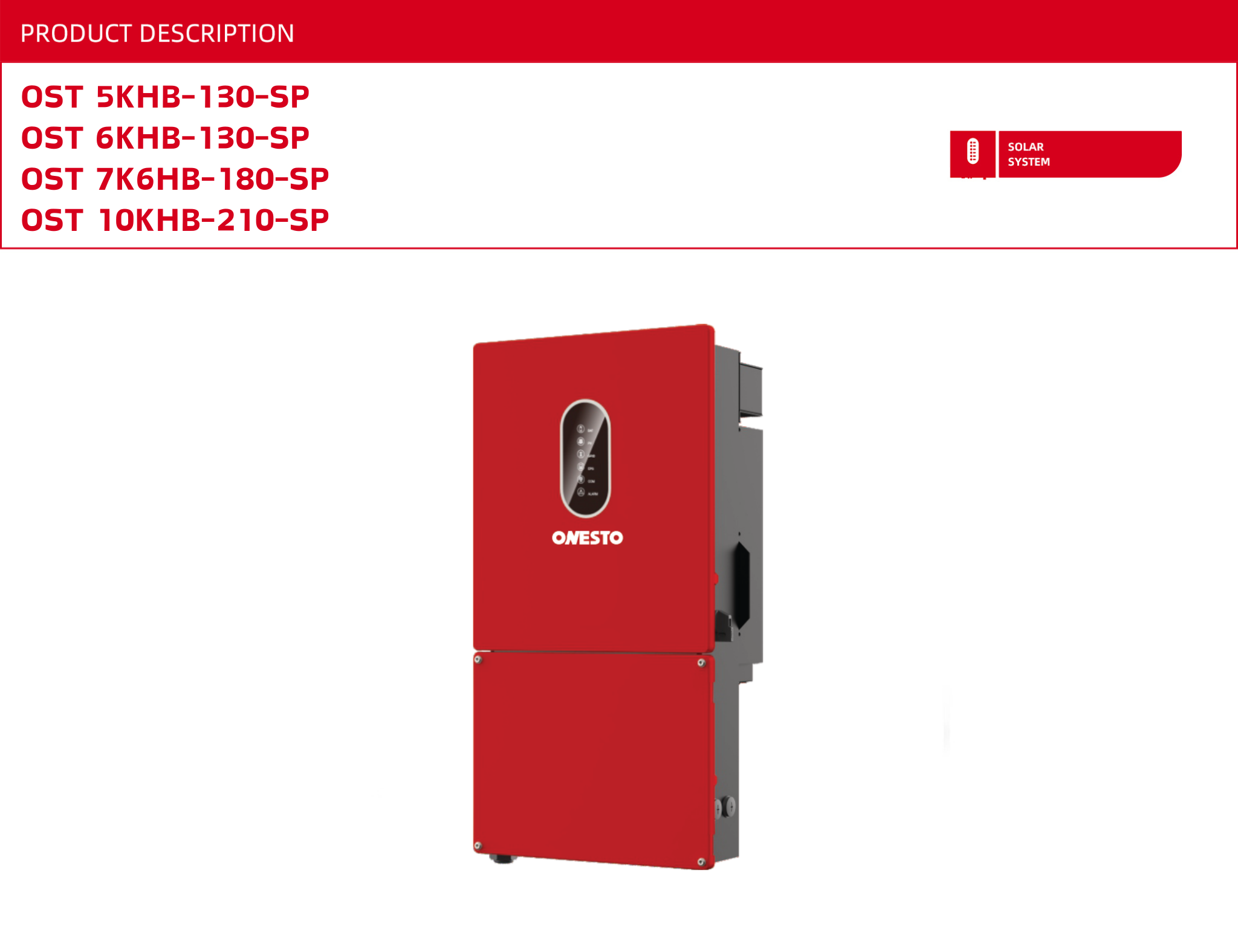

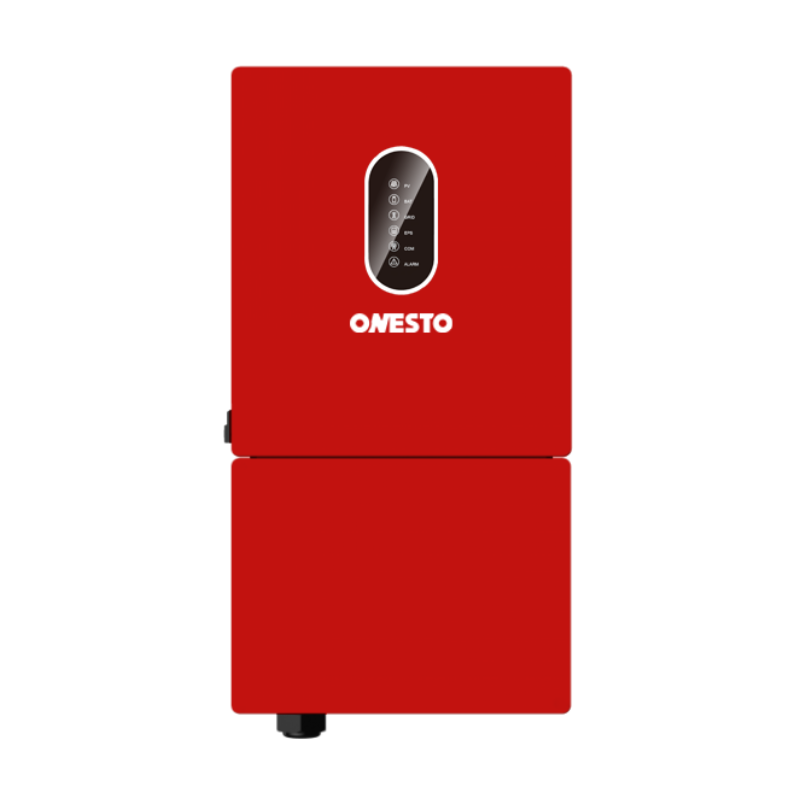

5kw 6kw 7.6kw 11.4kw Split Phase Solar Hybrid Inverter with 3 MPPT

With UL1741SB, UL1699B, IEEE1547:2018, CSA C22.2

MAXIMIZE PV INPUT POWER

1.Up to 200% oversizing allowed with 3 MPPTs

2.Support high power mdule with 30A PV input current

3.Support AC coupled solar input

4.Integrated arc fault circuit interrupter(AFCI) and Rapid Shutdown

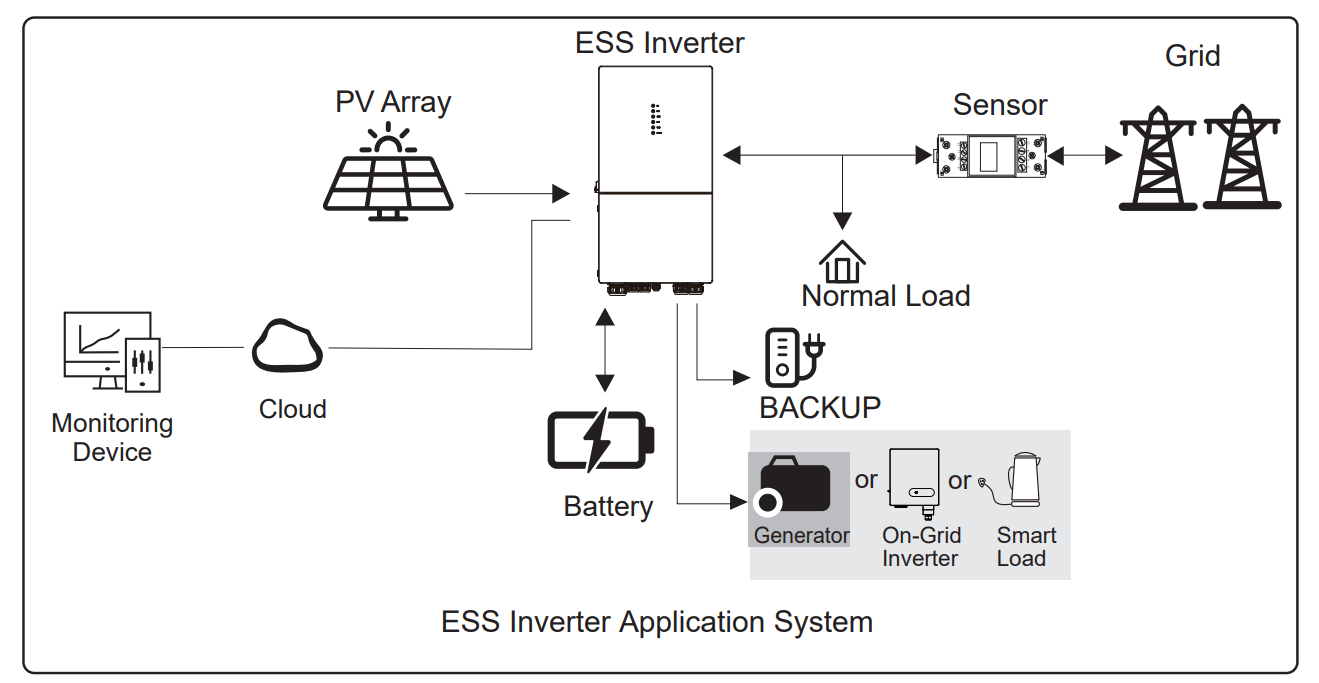

VERSATILE APPLICATIONS

1.Stackable up to 9 units

2.Standby generator connection for whole-home back up

3.Four application modes, mixed with time control

4.Remote configuration and upgrade

FLEXIBLE BATTERY CONFIGURATION

1.Built-in DC Breaker for safety and reliability

2.Support 40-64V Lithium or Lead-acid battery

3.Maximum battery charge/discharge current of 210A

STABLE OUTPUT POWER

1.Continuous 110% of nominal AC power

2.Support 120/240/208V connections

3.Seamless backup transition(<10ms)

Inquiry Now

Specification

Max. Efficiency	98.0%
Communication	Wifi(Optional)/GRPS(Optional)/RS485(Optional)

Model	OST 8KHB-180	OST 10KHB-210
Efficiency
Max. Efficiency (PV to AC)	98.0%
Max. Efficiency (Bat to AC)	95.0%
Input(PV)
Max. PV Power	12000W	15000W
Max. Input Voltage	600V
Max. Input Current (PV-A/PV-B)	30A/22A/22A
Max. short current (input A/inpit B)(A)	40A/30A/30A
Start operating voltage (V)	90V
MPPT Operating Voltage Range	70V-540V
No. of MPPT trackers	3
String per MPPT tracker	2
Input (BAT)
Compatible battery type	Lithium-ion / Lead-acid
Nominal battery voltage	48V
Battery voltage range	40V-64V
Max. charge/discharge current	210A/180A	210A/210A
Max. charge/discharge power	10000W/8000W	10000W/10000W
Lithium battery charge curve	Self-adaption to BMS
Input (Grid)
Nominal AC input power	12000W	15000W
Max. AC input current	52.5A	65.3A
Rated AC voltage	230V (Single phase)
Output (Grid)
Nominal AC output power	8000W	10000W
Max. AC output apparent power	8800VA	11000VA
Max. AC output power (PF=1)	8800W	11000W
Max. AC output current	40A	50A
Rated AC voltage	230V, L+N+PE
Rated grid frequency	50Hz / 60Hz
Grid connection	Single phase
Power factor	>0.99 @rated power(adjustable 0.8LD-0.8LG)
THDI	<3%(Rated Power)
